SAMPLING
SAMPLE MASTER

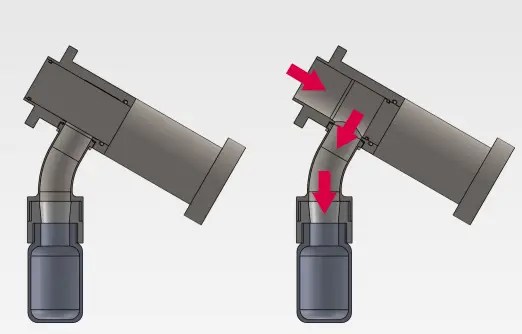

NON - INTRUSIVE
- Safe, controlled sampling from pressurized or vacuum systems
- Gravity discharge into dedicated sample collector
- Pressure or vacuum equalized before safe sample removal
- Non-intrusive version available for vacuum dryers
- Piston flush with vessel wall when closed
- Valve opens and piston retracts to allow gravity sampling
- Valve closes, pressure is equalized, sample is removed safely
- Manual, pneumatic, or electric operation
- CIP compatible design
- C-22 contact parts available
- Optional crustbreaker and high-containment sample collector
INTRUSIVE
- Designed for applications requiring active sample collection
- Piston enters the product flow to directly capture the sample
- Collected sample is transported out of the vessel and discharged by gravity
- Suitable for pressurized or vacuum systems
- Piston flush with vessel wall when closed
- Valve opens and piston advances into product flow to collect sample
- Valve closes as piston retracts and discharges sample into collector
- Pressure or vacuum is equalized before safe sample removal
- Manual, pneumatic, or electric operation
- CIP compatible design
- C-22 product contact parts available
- High-containment sample collector option
REACTOR SAMPLING
Reactor Sampling Valve for Controlled Process Sampling
Features:
- Enables continuous monitoring of reaction processes via integrated sight glass
- Allows safe sampling from reactors or vessels containing hazardous, corrosive, biological, or high-viscosity liquids
- Representative sample taken under process conditions without stopping the process or opening the reactor
- Sample transferred without pressure to ensure safe handling
- Suitable for environmentally unfriendly or toxic media
- Contact parts – PTFE, PFA, borosilicate glass, FFKM
- Non-contact parts – AISI 316L stainless steel
- Hygienic, chemically resistant design suitable for aggressive process environments
Options:
- Integration with vacuum, nitrogen, and rinsing supply lines
- Top flange equipped with pH metering connection
- Manual hand lever operation
- Integrated vacuum line or diaphragm pump for sample transfer
Compliance:
- ATEX: Outside the scope of Directive 2014/34/EU; suitable for use in Zone 0 / 1 / 2 hazardous areas
- PED: Constructed according to Sound Engineering Practice and suitable for Group 1 fluids (Article 3, Paragraph 3)
- DN 25
- DN 40
- DN 50
