Accessories

conn flex

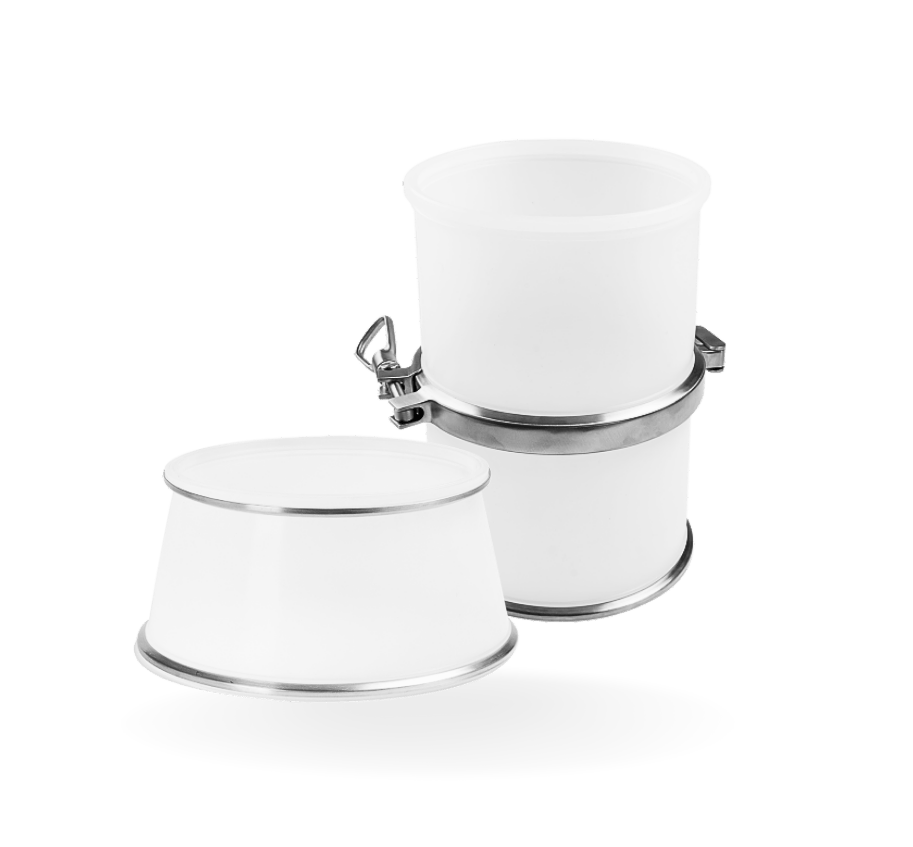

CONN – FLEX

Conn-Flex are flexible connecting elements that allow the alignment of two machines, of a pipeline and a machine, of two pipelines and other similar applications.

The compensators apart from being used to recuperate length variations can also be used for the misalignment of the elements to be connected. The compensators can also be connected to vibrating machines thus avoiding the transmission of vibrations in the pipelines or in the machines to fill.

APPLICATIONS:

  • To compensate for any mis-alignment (left-right / up-down) between mating elements
  • To absorb vibration
  • To introduce flexibility into a system
  • To connect Tri-clover ferrules of different sizes
  • Simple and quick way to make shorter or temporary connections


Suitable for CIP, SIP and WIP. In any case the resistance depending from the cleaning process and products being used.

Available Sizes:

  • 4” (DN 100)
  • 6” (DN 150)
  • 8” (DN 200)
  • 10” (DN 250)
  • 12” (DN 300)

CONNECTIONS & LEVERS

The Lever system & Various Connections

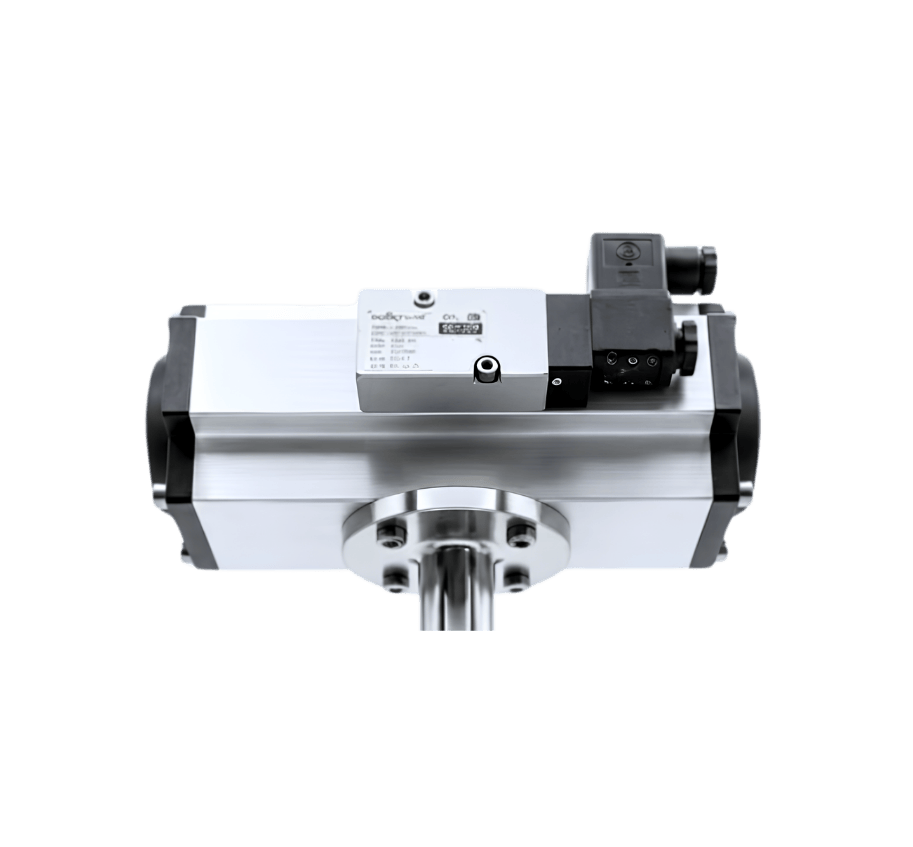

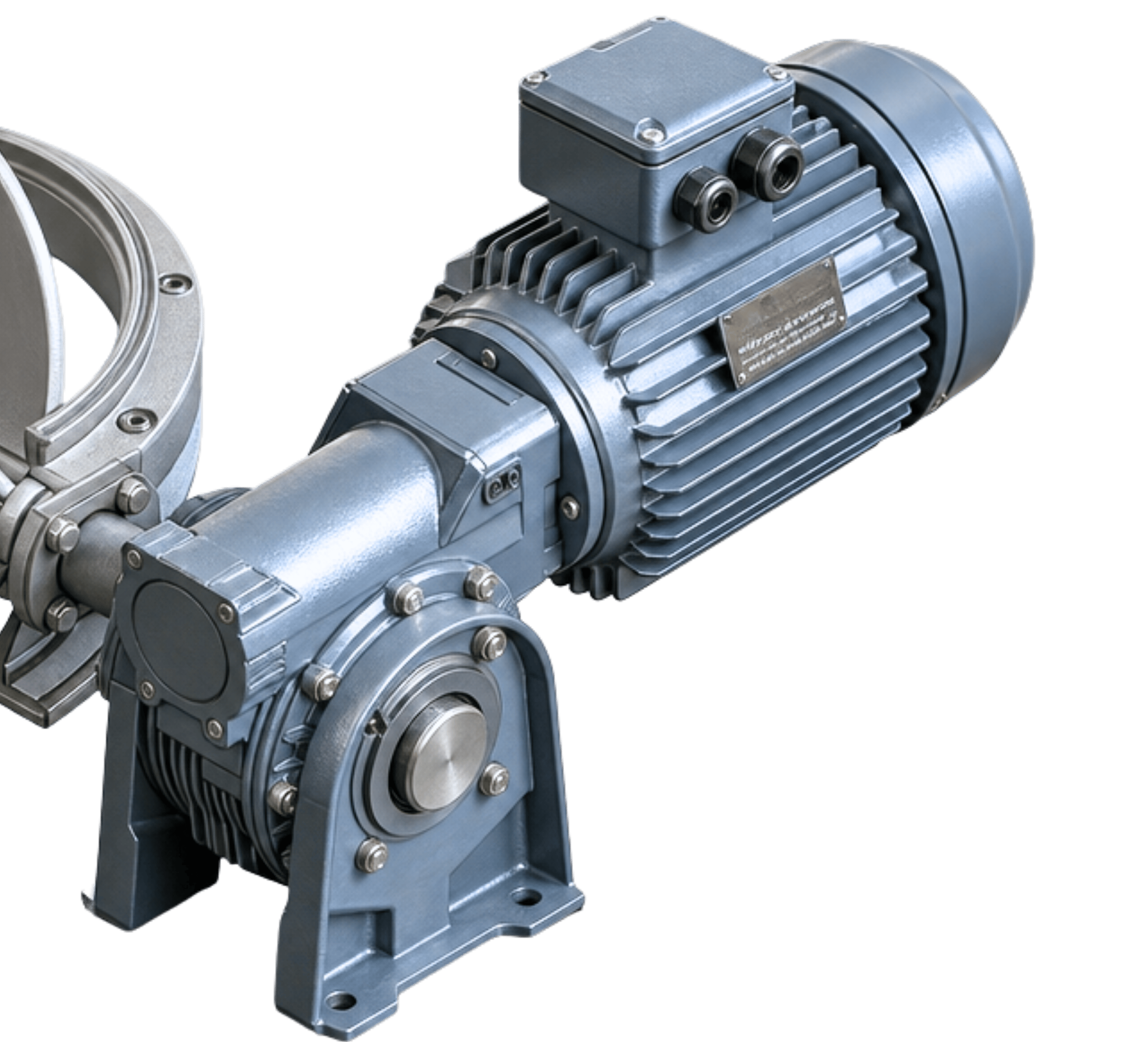

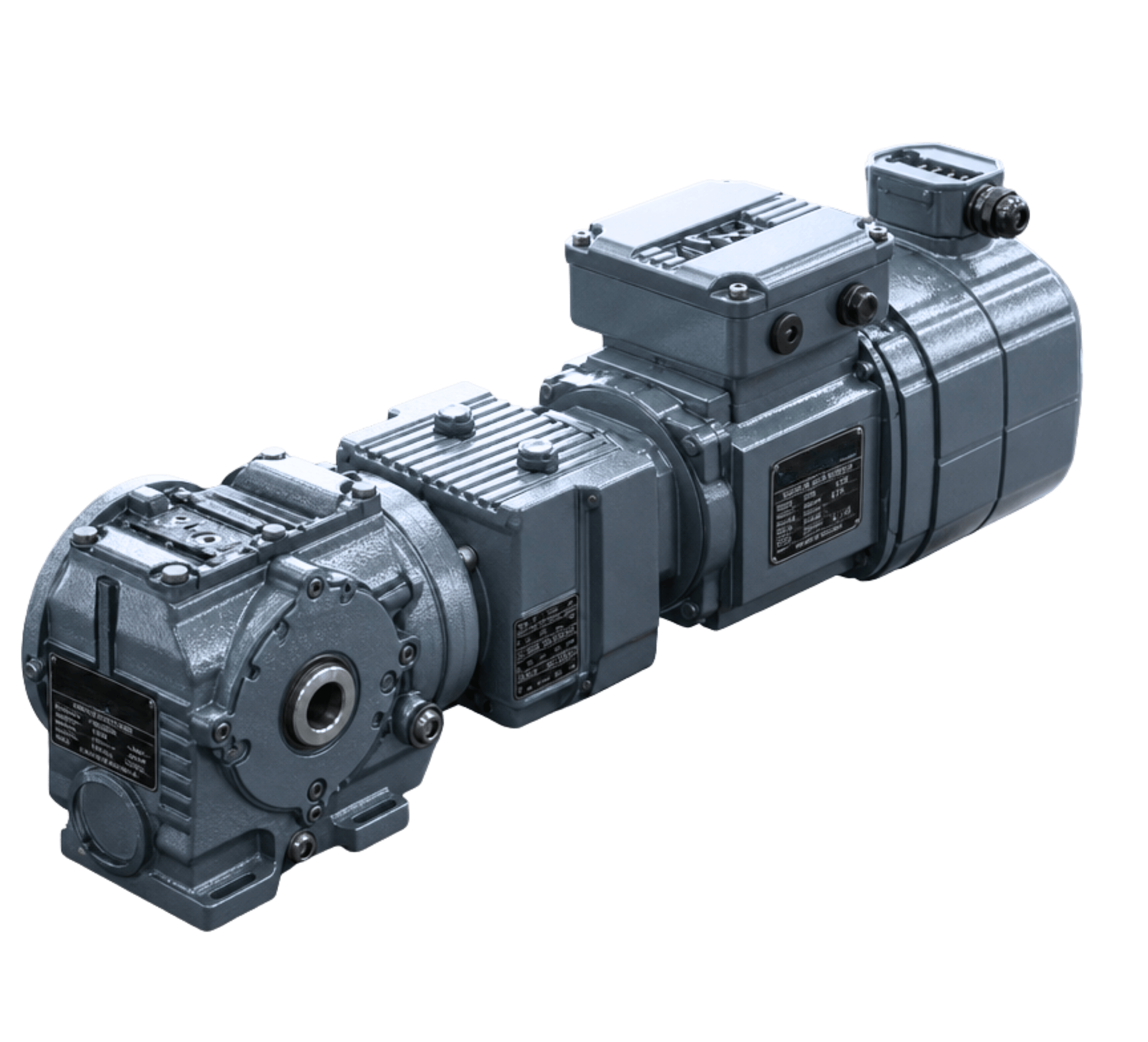

The lever system is a fundamental component for operating our sanitary valves. In addition to manual lever operation, our valves can be paired with pneumatic actuators, electric gear motors, and pneumatic motors, giving customers maximum flexibility in automation and process control.

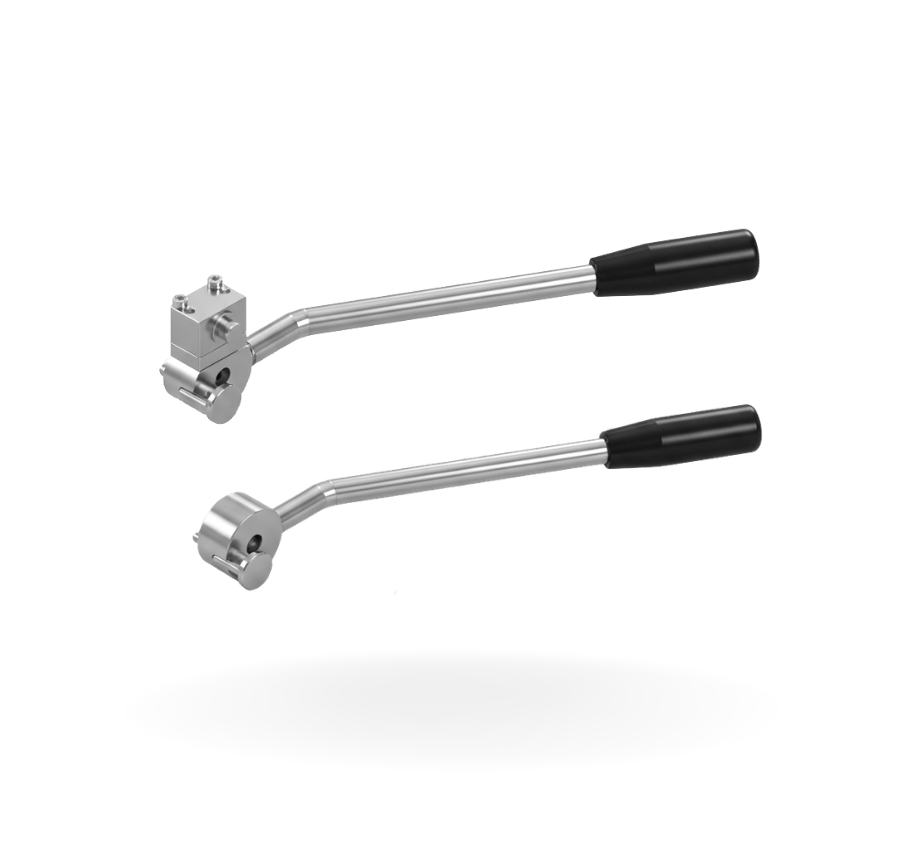

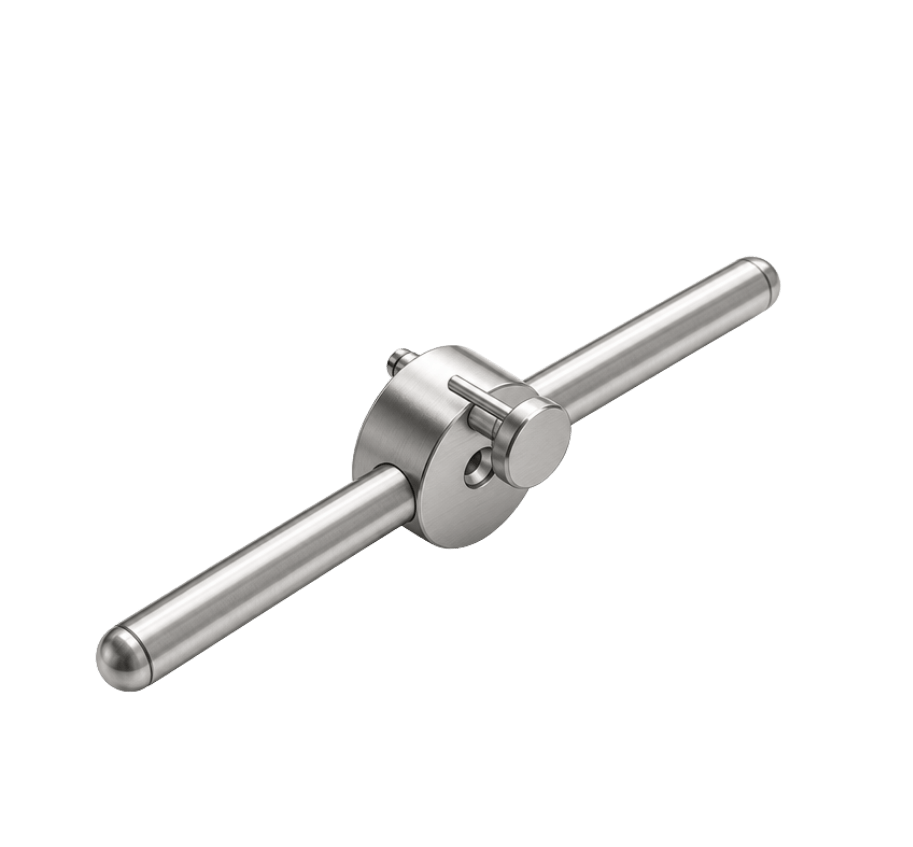

InoxFlow offers a complete selection of levers tailored to the host installation and customer specifications. Options include:

  • Material choices: high-grade stainless steel or stainless steel with a Bakelite knob

  • Configurations: various lengths, locking pins, integrated proximity sensors, or dual-lever setups

This wide range of customization ensures that every installation benefits from optimal safety, durability, and user convenience.

Our sanitary valves are engineered for easy integration into process equipment using Tri-Clover (TC) clamp connections. This industry-recognized standard is especially valued in the pharmaceutical sector, where it ensures hygienic performance, quick installation, and reliable sealing.

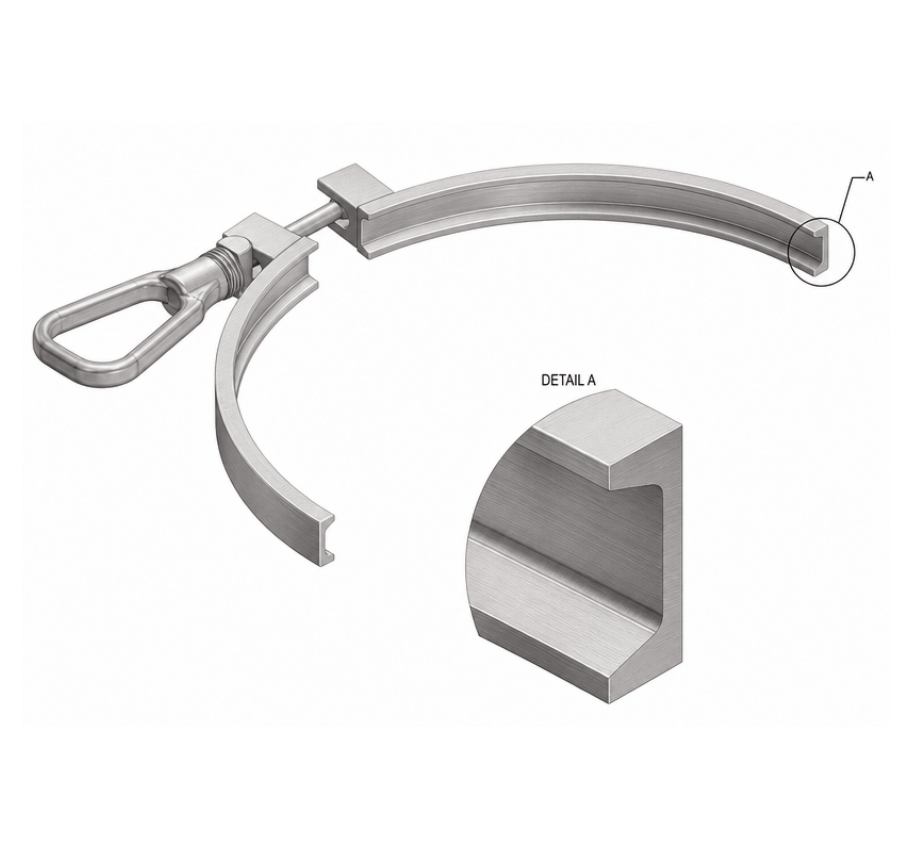

InoxFlow provides a comprehensive range of special Tri-Clover connections and clamps, designed to adapt to different processing requirements while maintaining full sanitary compliance.

MOUNTING COLLAR

Mounting Collar System - Ease of Installation

Installing a valve beneath a machine, hopper, or process vessel can often be challenging, even when using Tri-Clamp connections, and may require more than one operator.

The Compact Mounting Collar system includes a proprietary welding ferrule with precision-machined slots, permanently welded to the outlet. The valve itself is equipped with locating pins that engage directly into the ferrule slots. With just a slight rotation, the valve locks securely into position, allowing the operator to work hands-free and easily attach the Tri-Clamp for final tightening. A high-performance O-ring seal ensures a leak-proof and sanitary connection.

mounting collar
