The Butterfly Valve
Precision, Reliability, and Hygienic Performance, Engineered into Every Butterfly Valve –
At InoxFlow, our butterfly valves are fully CNC-machined from solid stainless steel, eliminating the porosity risks commonly associated with cast components.
This manufacturing approach ensures superior structural integrity, enhanced corrosion resistance, and consistent long-term performance in demanding sanitary applications.
When process reliability and hygienic design are critical, precision manufacturing makes the difference.
Modular System
The Butterfly Valve system is a modular design in which the same basic valve can be supplied as:
- General purpose butterfly valve
- Flexi disk butterfly valve for interception of fragile products
- Rotary valve
- Rotary Flexible valve for feeding tablets and other fragile products without damage
Mounting System
For larger valves, we recommend our Mounting System to make fitting and removing heavier valves easier and safer.

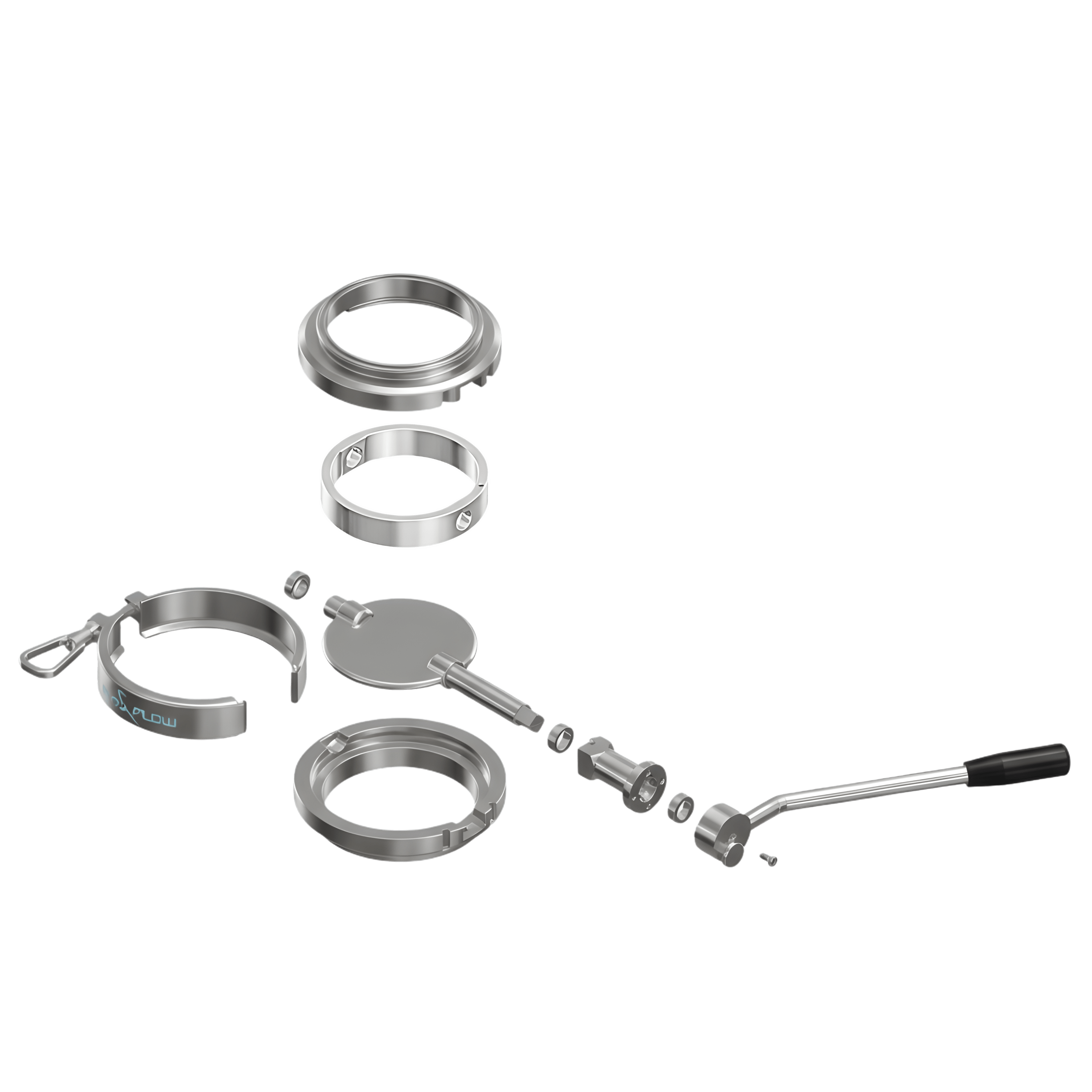

The Compact Mounting Collar Bayonet system consists of:
- A proprietary welding ferrule with machined slots, to be welded in place on the outlet
- The valve fitted with locating pins that engage in the slots
- A clamp to secure the valve to the ferrule
- An O-ring to ensure tightness at the joint
Using the system is simple and intuitive:
- Place the valve face against the ferrule so that the pins engage in the slots
- Rotate the valve a few degrees so the valve is held in place by the pins in the slots
- Fit the clamp
Removing the valve is also easier and, above all, safer, as it is now a simple two-stage process. The valve is held in place by the pins when the clamp is removed, so there is no danger of it falling and causing injury or damage.
