Feeder valve

FEEDER VALVE

InoxFlow sanitary feeder valves deliver continuous, metered flow of powders and granules for food, beverage, pharmaceutical, nutraceutical, and chemical processing. Each valve is precision-machined from solid stainless steel — never cast — eliminating the internal porosity that traps product and harbors bacteria, for smoother surfaces, easier cleaning, and longer service life.

DIMENSIONS

4″ (DN 100)
6″ (DN 150)
8″ (DN 200)
10″ (DN 250)
12″ (DN 300)
14″ (DN 350)
16″ (DN 400)
18″ (DN 450)


OPERATION

  • Electric or pneumatic motor drive
  • Pneumatic or electric actuator 180°
  • Complete range of options and accessories

WIP/CIP

Suitable for WIP & CIP. Cleaning and Sterilization operations are greatly simplified thanks to the extreme ease of stripping down and reassembly offered by the clamp system

SPECIFICATIONS

Contact parts: AISI316L, C22, (Other alloys available upon request)
Other Parts: AISI 304

cONNECTIONS

  • TC BS 4825-3
  • TC ASME/BPE
  • TC DIN32676
  • Flange
  • Weld End
  • Jacob Type
  • Docking Collar.

LEAD TIME

1-2 Weeks on standard products

Design features

How our Feeder Valve Works

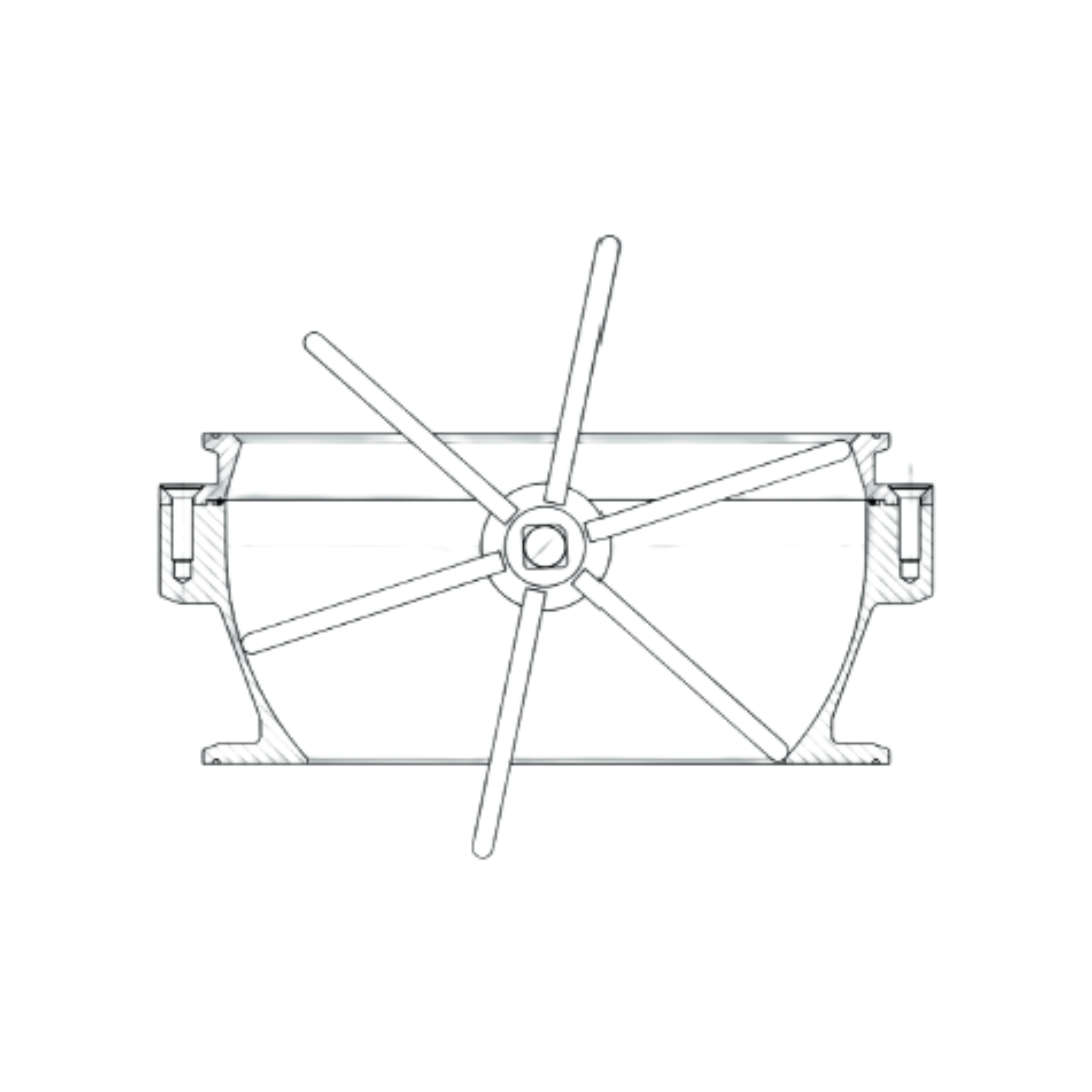

The feeder valve uses a six-lobe dosing rotor inside a body that’s machined spherical to match the rotor exactly. The shaping is deliberate: at every point in the rotation, at least one lobe sits close enough to the body wall that product never has an uncontrolled path through the valve. Flow stays under complete control at all times — ideal for steady dosing and consistent in-line feeding.

impeller valve
impeller valve design

Discharge rate is set simply by varying motor speed, so you can match feed rate precisely to your downstream process.

NEED BATCH DISCHARGE instead of CONTINUOUS FLOW?

Check out our Rotary Valve.

Feeder

two model options

symmetric & Asymmetric Configurations

The feeder valve is offered in two body configurations:

  • Symmetric (standard). An open-flow design with no seal — the seal isn’t needed for continuous operation and would only be worn by it. Best for steady feeding at ambient conditions.
  • Asymmetric (sealed). When there’s a pressure difference or vacuum between the inside of the valve and the outside, the asymmetric version is sealed to maintain in/out tightness. It’s also the recommended choice for applications involving CIP/WIP (clean-in-place / wash-in-place).

Choosing between them comes down to whether your line runs a pressure or vacuum differential, or requires in-place cleaning.

high-volume motorized option

For large-volume discharge where a standard actuated feeder valve may struggle to reach the required throughput, InoxFlow offers a motorized feeder valve built for continuous operation at higher cyclical speeds than an actuated valve can achieve. It runs on either electric or pneumatic motors, with discharge rate controlled by motor speed.

machined, not cast

Difference you can measure

Cast valves are formed by pouring molten metal into a mold, leaving microscopic voids beneath the surface. InoxFlow valves are CNC-machined from solid bar stock, which means:

  • No internal porosity — nothing for product or bacteria to lodge in
  • Tighter tolerances for a more consistent, repeatable seal
  • Smoother internal surfaces for faster, more thorough clean-in-place cycles
  • Longer service life under repeated actuation and wash-down

custom solutions at the standard price

THE PROCESS IS EASY -

1

Tell us exactly what problem you need to solve

2

We review your specifics and provide you a solution

3

You seat back and we take care of everything

END-TO-END

Beyond Sanitary: built to your application

Need a non-sanitary or specialty configuration? InoxFlow butterfly valves are built to order and adapt well beyond hygienic processing. Through tailored material, seal, and finish selection, the same machined-valve platform handles demanding industrial duties — including abrasive media.

Request a Quote

FAQ | You ask, we answer

A sanitary feeder valve delivers continuous, metered flow of powders and granules into a process — used for steady dosing and consistent in-line feeding in hygienic applications.

A feeder valve provides continuous, metered flow, while a rotary valve discharges material in measured batches with an airlock seal. Choose based on whether your process needs uninterrupted feeding or batch dosing.

Machining from solid stainless steel eliminates the internal porosity created during casting, giving smoother surfaces, easier cleaning, no harbor points for bacteria, and longer service life.

Tri-Clamp, DIN flanges, ANSI flanges, and custom sizes or combinations to match existing equipment.

Yes. InoxFlow feeder valves are built to order and can be adapted for industrial and abrasive media through material, seal, and finish selection.
